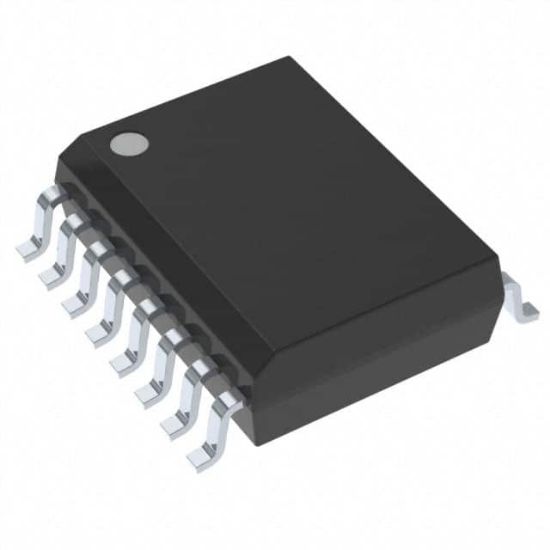

ISO7240CDW

DGTL ISO 2500VRMS 4CH GP 16SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: ISO7240CDW

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ISO7240CDW Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ISO7240C	ISO7240CDW	TI	16	0	Quad Channel, 4/0, 25Mbps, Digital Isolator

Voltage - Supply	3.15V ~ 5.5V
Rise / Fall Time (Typ)	2ns, 2ns
Common Mode Transient Immunity (Min)	25kV/μs
Propagation Delay tpLH / tpHL (Max)	42ns, 42ns
Data Rate	25Mbps
Technology	Capacitive Coupling
Isolated Power	No
Number of Channels	4
Pulse Width Distortion (Max)	2.5ns
Package	Bulk,Tube
Channel Type	Unidirectional
Mounting Type	Surface Mount
Inputs - Side 1/Side 2	4/0
Type	General Purpose
Supplier Device Package	16-SOIC
Operating Temperature	-40°C ~ 125°C
Voltage - Isolation	2500Vrms
RoHS	RoHS
