LM2901YPT

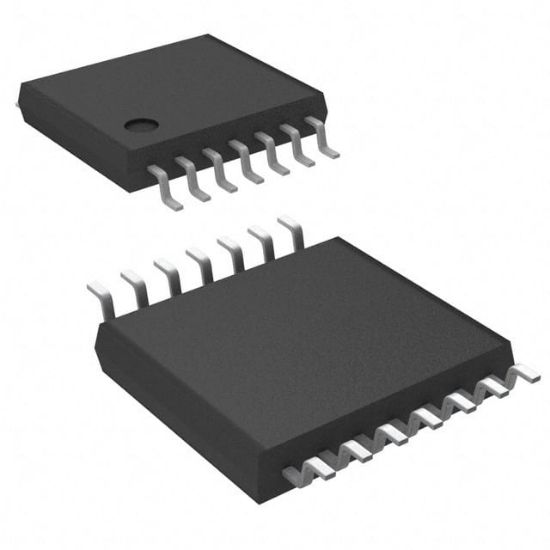

IC VOLT COMPARATOR QUAD 14-TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: LM2901YPT

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LM2901YPT Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
2901Y	LM2901YPT		TSSOP14	0	Low power quad voltage comparator

Operating Temperature	-40°C ~ 125°C
Voltage - Input Offset (Max)	7mV @ 5V
Number of Elements	4
Current - Output (Typ)	16mA @ 5V
Mounting Type	Surface Mount
Hysteresis	-
Supplier Device Package	14-TSSOP
Voltage - Supply, Single/Dual (±)	2V ~ 32V, ±1V ~ 16V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current - Quiescent (Max)	2.5mA
CMRR, PSRR (Typ)	-
Type	General Purpose
Propagation Delay (Max)	-
Current - Input Bias (Max)	0.25μA @ 5V
RoHS	RoHS
Output Type	CMOS, DTL, ECL, MOS, Open-Collector, TTL
