LM5001SD/NOPB

IC REG MULTI CONFG ADJ 8WSON

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: LM5001SD/NOPB

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LM5001SD/NOPB Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
LM5001	LM5001SD/NOPB	TI	8	0	3.1-75V Wide Vin, 1A Current Mode Non-Synchronous Switch Mode Regulator

Operating Temperature	-40°C ~ 125°C (TJ)
Frequency - Switching	50kHz ~ 1.5MHz
Voltage - Output (Min/Fixed)	3.1V
Mounting Type	Surface Mount
Current - Output	800mA (Switch)

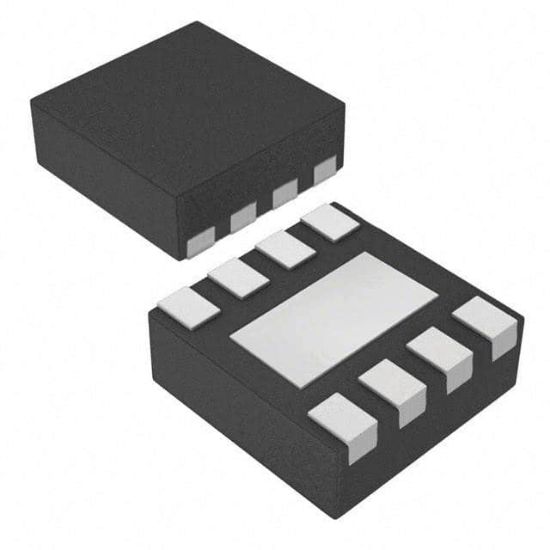

Supplier Device Package	8-WSON (4x4)
Synchronous Rectifier	No
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive, Isolation Capable
Voltage - Input (Min)	3.1V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Topology	Boost, Flyback, Forward Converter, SEPIC
Voltage - Input (Max)	75V
Number of Outputs	1
RoHS	RoHS
Voltage - Output (Max)	76V (Switch)
Output Type	Adjustable
