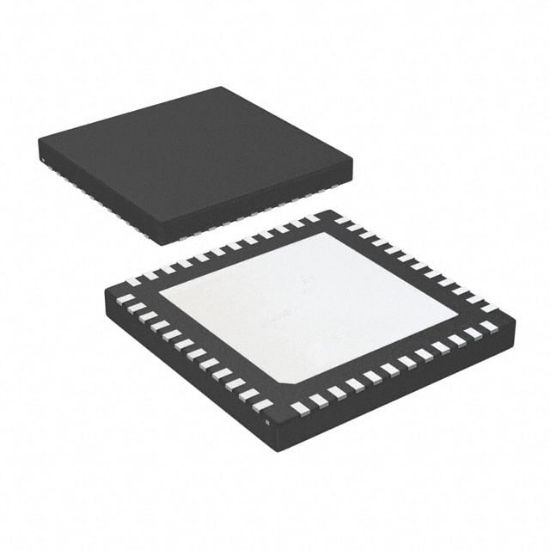

LMH0071SQE/NOPB

IC DESERIALIZER SDI W/LVDS 48QFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: LMH0071SQE/NOPB

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LMH0071SQE/NOPB Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
LMH0071	LMH0071SQE/NOPB	TI	48	0	SD, DVB-ASI SDI Deserializer with Loopthrough and LVDS Interface

Output Type	LVDS
Operating Temperature	-40°C ~ 85°C (TA)
Number of Inputs	2
Data Rate	2.97Gbps
RoHS	RoHS
Supplier Device Package	48-WQFN (7x7)
Function	Deserializer
Number of Outputs	5
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Input Type	LVCMOS
Voltage - Supply	2.5V, 3.3V
Mounting Type	Surface Mount
