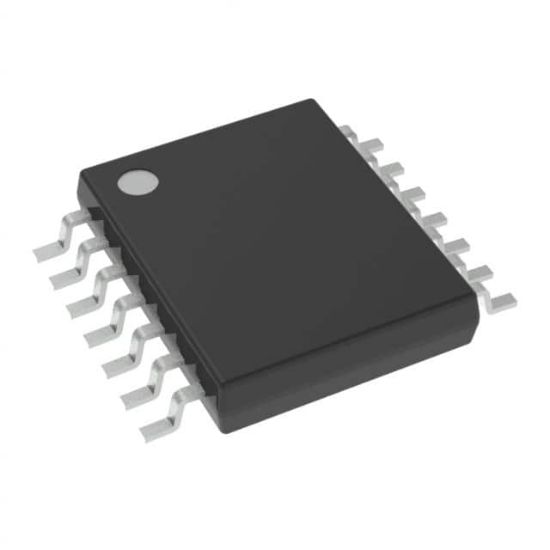

LMV324QPWRQ1

IC OPAMP GP 4 CIRCUIT 14TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: LMV324QPWRQ1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LMV324QPWRQ1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
MV324Q1	LMV324QPWRQ1		TSSOP-14	14	Automotive Catalog Quad Low-Voltage Rail-to-Rail Output Operational Amplifier

Operating Temperature	-40°C ~ 125°C
Current - Input Bias	15 nA
Mounting Type	Surface Mount
Current - Output / Channel	160 mA
Slew Rate	1V/μs
Number of Circuits	4
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Gain Bandwidth Product	1 MHz
Voltage - Input Offset	1.7 mV
Amplifier Type	General Purpose
Supplier Device Package	14-TSSOP
Voltage - Supply Span (Max)	5.5 V
Voltage - Supply Span (Min)	2.7 V
-3db Bandwidth	-
RoHS	RoHS
Current - Supply	410μA (x4 Channels)
Output Type	Rail-to-Rail
