LMV796MFX

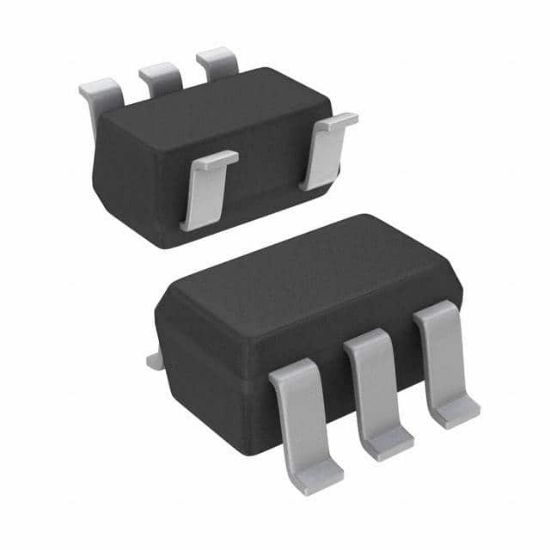

IC OPAMP GP 1 CIRCUIT SOT23-5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: LMV796MFX

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LMV796MFX Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
AT3A	LMV796MFX		SOT23-5	5	17 MHz, Low Noise, CMOS Input, 1.8V Operational Amplifiers

Operating Temperature	-40°C ~ 125°C
Current - Input Bias	0.1 pA
Mounting Type	Surface Mount
Current - Output / Channel	60 mA
Slew Rate	11.5V/μs
Number of Circuits	1
Package	Tape & Reel (TR)
Gain Bandwidth Product	17 MHz
Voltage - Input Offset	100 μV
Amplifier Type	General Purpose
Supplier Device Package	SOT-23-5
Voltage - Supply Span (Max)	5.5 V
Voltage - Supply Span (Min)	1.8 V
-3db Bandwidth	-
RoHS	RoHS
Current - Supply	1.15mA
Output Type	Rail-to-Rail
