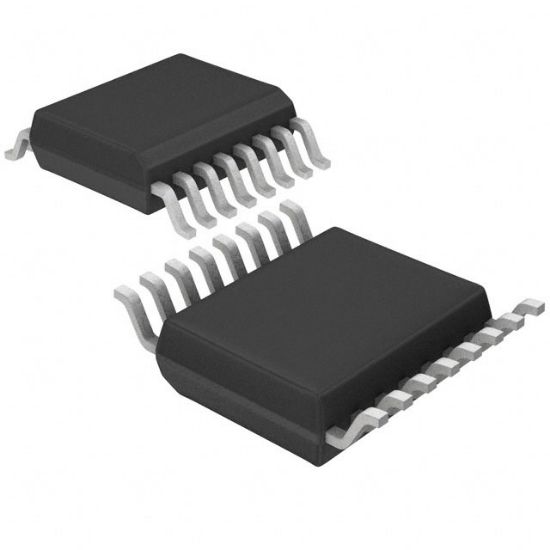

LTC1555IGN

IC TRNSLTR BIDIRECTIONAL 16SSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Analog Devices Inc.

SKU: LTC1555IGN

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LTC1555IGN Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
1555I	LTC1555IGN	Linear	STOP16	16

Operating Temperature	-40°C ~ 85°C (TA)
Voltage - VCCA	1.8 V ~ 5.5 V
Data Rate	-
Output Signal	-
Input Signal	-
Number of Circuits	1
Channels per Circuit	1
Package	Tube
Channel Type	Bidirectional
Voltage - VCCB	2.7 V ~ 10 V
Mounting Type	Surface Mount
Supplier Device Package	16-SSOP
Translator Type	Voltage Level
Features	SIM Card Interface, Thermal-Shutdown Protection
RoHS	RoHS
Output Type	Open Drain
