LTC3614EUDD

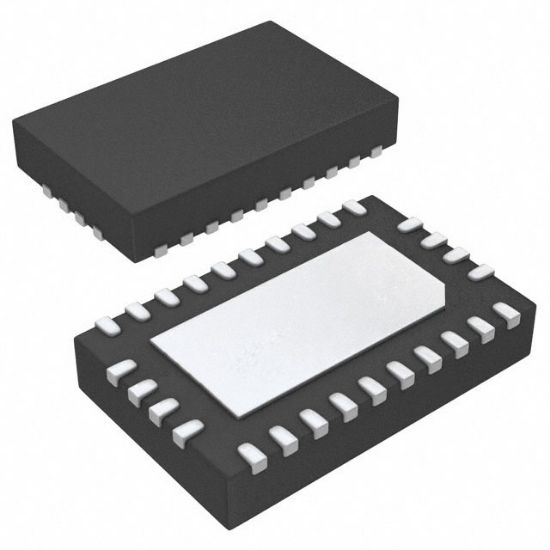

IC REG BUCK ADJUSTABLE 4A 24QFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Analog Devices Inc.

SKU: LTC3614EUDD

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LTC3614EUDD Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
LFVM	LTC3614EUDD	Linear	DFN8	8

Operating Temperature	-55°C ~ 150°C (TJ)
Frequency - Switching	300kHz ~ 4MHz
Voltage - Output (Min/Fixed)	0.6V
Mounting Type	Surface Mount
Current - Output	4A
Supplier Device Package	24-QFN (3x5)
Synchronous Rectifier	Yes
Function	Step-Down
Output Configuration	Positive
Voltage - Input (Min)	2.25V
Package	Tube
Topology	Buck
Voltage - Input (Max)	5.5V
Number of Outputs	1
RoHS	RoHS
Voltage - Output (Max)	5.5V
Output Type	Adjustable
