M74HC02TTR

IC GATE NOR 4CH 2-INP 14TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: STMicroelectronics

SKU: M74HC02TTR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

M74HC02TTR Description

Voltage - Supply	2V ~ 6V
Logic Type	NOR Gate
Max Propagation Delay @ V, Max CL	13ns @ 6V, 50pF
Mounting Type	Surface Mount

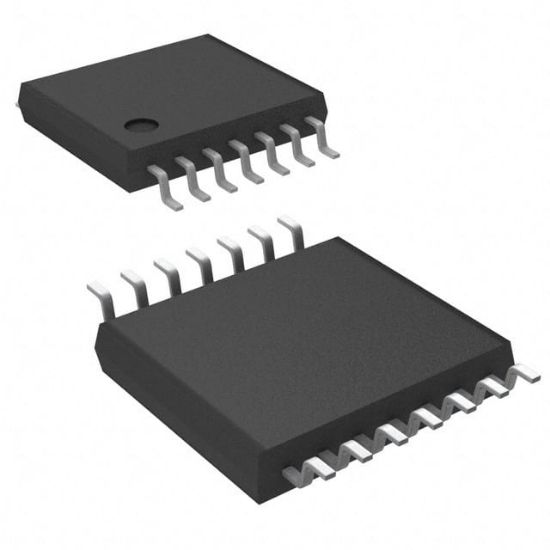

Supplier Device Package	14-TSSOP
Logic Level - High	1.5V ~ 4.2V
Number of Circuits	4
Package	Tape & Reel (TR)
Current - Quiescent (Max)	1 μA
Logic Level - Low	0.5V ~ 1.8V
Number of Inputs	2
Operating Temperature	-55°C ~ 125°C
Features	-
RoHS	RoHS
Current - Output High, Low	5.2mA, 5.2mA
