MAX3223IDBR

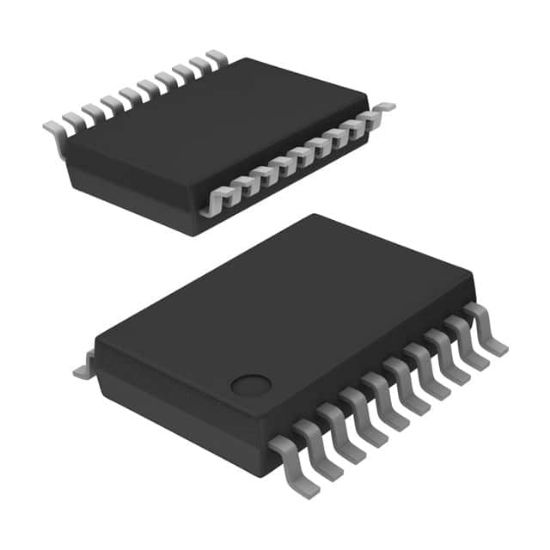

IC TRANSCEIVER FULL 2/2 20SSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: MAX3223IDBR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MAX3223IDBR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
MB3223I	MAX3223IDBR		SSOP-20	20	3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver

Number of Drivers/Receivers	2/2
Operating Temperature	-40°C ~ 85°C
Data Rate	250kbps
Type	Transceiver
Duplex	Full
RoHS	RoHS
Receiver Hysteresis	500 mV
Voltage - Supply	3V ~ 5.5V
Supplier Device Package	20-SSOP
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Mounting Type	Surface Mount
Protocol	RS232
