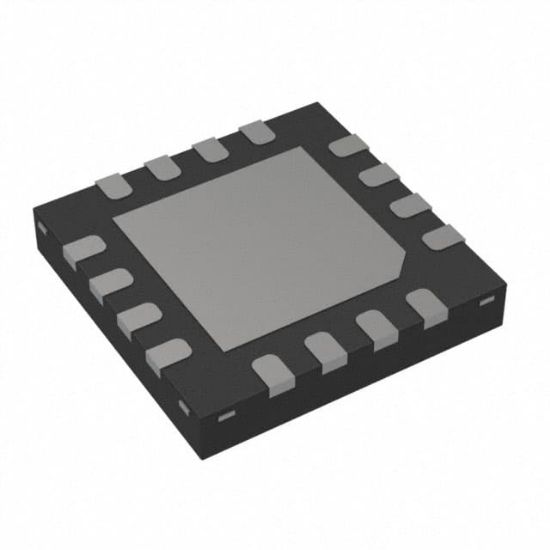

MAX7321ATE+

IC I/O EXPANDER I2C 8B 16TQFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Analog Devices Inc./Maxim Integrated

SKU: MAX7321ATE+

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MAX7321ATE+ Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ADC	MAX7321ATE+		TQFN-16EP	16	I2C Port Expander with 8 Open-Drain I/Os

Number of I/O	8
Current - Output Source/Sink	20mA
Mounting Type	Surface Mount
Supplier Device Package	16-TQFN (3x3)
Clock Frequency	400 kHz
Operating Temperature	-40°C ~ 125°C
Package	Tube
Interface	I2C
Interrupt Output	Yes
Voltage - Supply	1.71V ~ 5.5V
Features	POR
RoHS	RoHS
Output Type	Open Drain, Push-Pull
