MC14001BDTR2G

IC GATE NOR 4CH 2-INP 14TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: MC14001BDTR2G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MC14001BDTR2G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
14+001B	MC14001BDTR2G		TSSOP-14	0	Quad 2-Input NOR Gate

Voltage - Supply	3V ~ 18V
Logic Type	NOR Gate
Max Propagation Delay @ V, Max CL	80ns @ 15V, 50pF
Mounting Type	Surface Mount

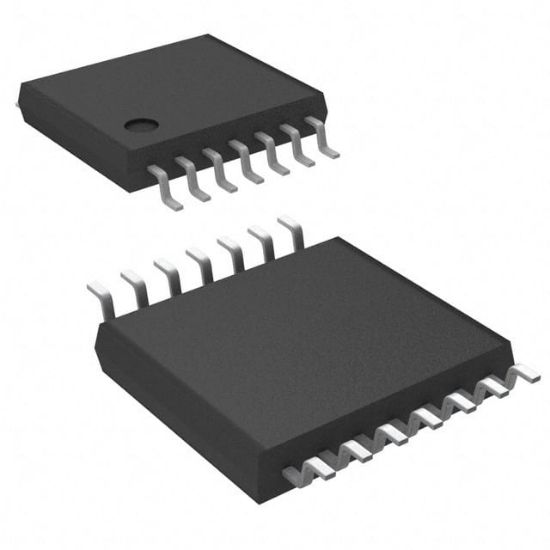

Supplier Device Package	14-TSSOP
Logic Level - High	3.5V ~ 11V
Number of Circuits	4
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current - Quiescent (Max)	1 μA
Logic Level - Low	1.5V ~ 4V
Number of Inputs	2
Operating Temperature	-55°C ~ 125°C
Features	-
RoHS	RoHS
Current - Output High, Low	8.8mA, 8.8mA
