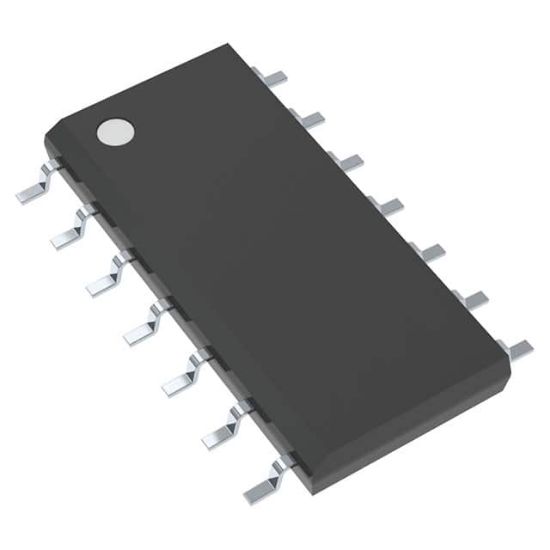

MC14541BDG

IC OSC PROG TIMER 3MHZ 14SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: MC14541BDG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MC14541BDG Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
14541BG	MC14541BDG		SOIC-14	0	Programmable Timer Oscillator

Operating Temperature	-55°C ~ 125°C
Type	Programmable Timer
Frequency	3MHz
RoHS	RoHS
Current - Supply	15 μA
Voltage - Supply	3V ~ 18V
Supplier Device Package	14-SOIC
Package	Tube
Count	-
Mounting Type	Surface Mount
