MC74ACT32DG

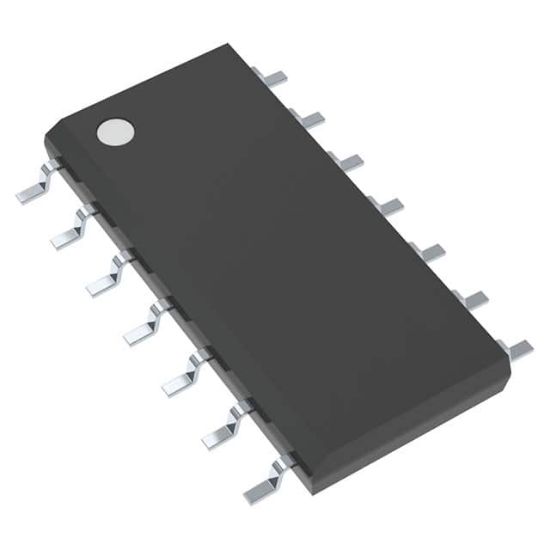

IC GATE OR 4CH 2-INP 14SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: MC74ACT32DG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MC74ACT32DG Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
AC32TG	MC74ACT32DG		SOIC-14	0	Quad 2-Input OR Gate with TTL

Voltage - Supply	4.5V ~ 5.5V
Logic Type	OR Gate
Max Propagation Delay @ V, Max CL	9ns @ 5V, 50pF
Mounting Type	Surface Mount
Supplier Device Package	14-SOIC
Logic Level - High	2V
Number of Circuits	4
Package	Tube
Current - Quiescent (Max)	4 μA
Logic Level - Low	0.8V
Number of Inputs	2
Operating Temperature	-40°C ~ 85°C
Features	-
RoHS	RoHS
Current - Output High, Low	24mA, 24mA
