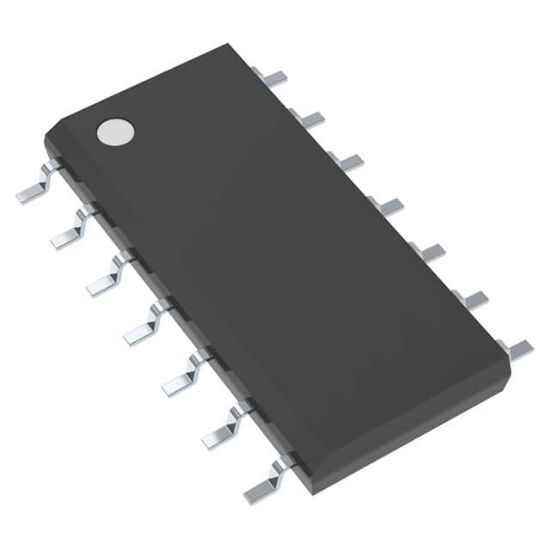

MC74HC08ADG

IC GATE AND 4CH 2-INP 14SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: MC74HC08ADG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MC74HC08ADG Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
HC08AG	MC74HC08ADG		SOIC-14	0	Quad 2-Input AND Gate

Voltage - Supply	2V ~ 6V
Logic Type	AND Gate
Max Propagation Delay @ V, Max CL	13ns @ 6V, 50pF
Mounting Type	Surface Mount
Supplier Device Package	14-SOIC
Logic Level - High	1.5V ~ 4.2V
Number of Circuits	4
Package	Bulk,Tube
Current - Quiescent (Max)	1 μA
Logic Level - Low	0.5V ~ 1.8V
Number of Inputs	2
Operating Temperature	-55°C ~ 125°C
Features	-
RoHS	RoHS
Current - Output High, Low	5.2mA, 5.2mA
