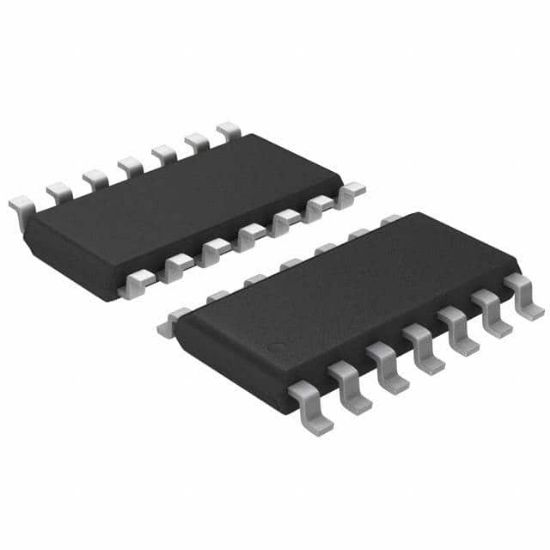

MC74HC86AFELG

IC GATE XOR 4CH 2-INP SOEIAJ-14

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: MC74HC86AFELG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MC74HC86AFELG Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
74HC86A	MC74HC86AFELG		SOEIAJ-14	0	Quad 2-Input Exclusive OR Gate

Voltage - Supply	2V ~ 6V
Logic Type	XOR (Exclusive OR)
Max Propagation Delay @ V, Max CL	17ns @ 6V, 50pF
Mounting Type	Surface Mount
Supplier Device Package	SOEIAJ-14
Logic Level - High	1.5V ~ 4.2V
Number of Circuits	4
Package	Tape & Reel (TR),Bulk
Current - Quiescent (Max)	1 μA
Logic Level - Low	0.5V ~ 1.8V
Number of Inputs	2
Operating Temperature	-55°C ~ 125°C
Features	-
RoHS	RoHS
Current - Output High, Low	5.2mA, 5.2mA
