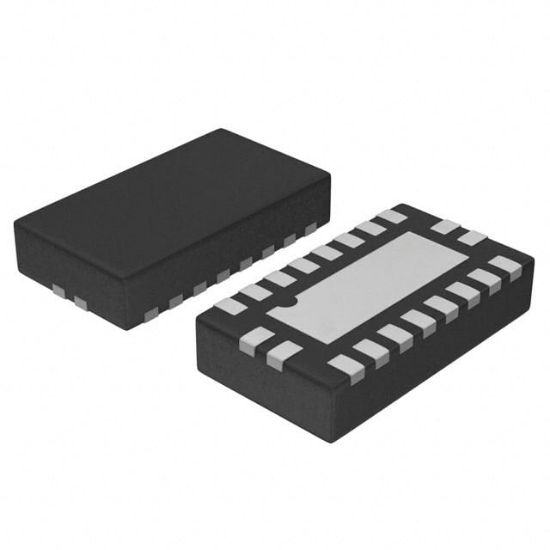

MC74LCX244MNTWG

IC BUFFER NON-INVERT 5.5V 20QFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: MC74LCX244MNTWG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MC74LCX244MNTWG Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
LCX+244	MC74LCX244MNTWG		QFN2.5x2.5-20	0	Low Voltage Non-inverting Octal Buffer, 3-State

Output Type	3-State
Operating Temperature	-55°C ~ 125°C (TA)
Current - Output High, Low	24mA, 24mA
RoHS	RoHS
Logic Type	Buffer, Non-Inverting
Voltage - Supply	2V ~ 5.5V
Number of Elements	2
Supplier Device Package	20-QFN (2.5x4.5)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Input Type	-
Number of Bits per Element	4
Mounting Type	Surface Mount
