MMBFJ175LT1G

JFET P-CH 30V 0.225W SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: MMBFJ175LT1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MMBFJ175LT1G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
6W	MMBFJ175LT1G	ON	SOT?23	3	P-Channel JFET Transistor, 30 V

Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

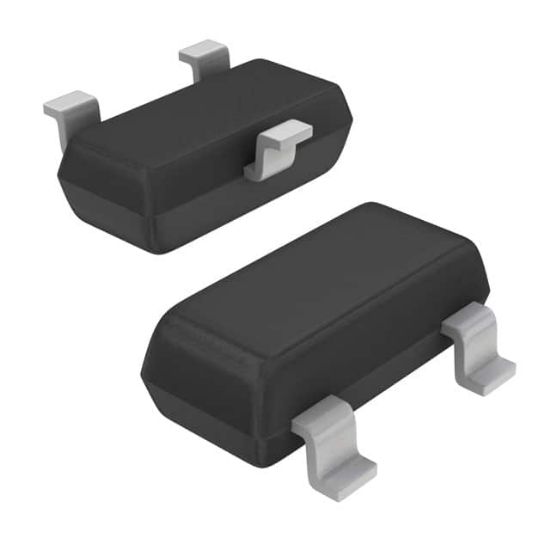

Supplier Device Package	SOT-23-3 (TO-236)
FET Type	P-Channel
Voltage - Cutoff (VGS off) @ Id	3 V @ 10 nA
Power - Max	225 mW
Voltage - Breakdown (V(BR)GSS)	30 V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Current - Drain (Idss) @ Vds (Vgs=0)	7 mA @ 15 V
Drain to Source Voltage (Vdss)	-
Current Drain (Id) - Max	-
Resistance - RDS(On)	125 Ohms
Input Capacitance (Ciss) (Max) @ Vds	11pF @ 10V (VGS)
RoHS	RoHS
