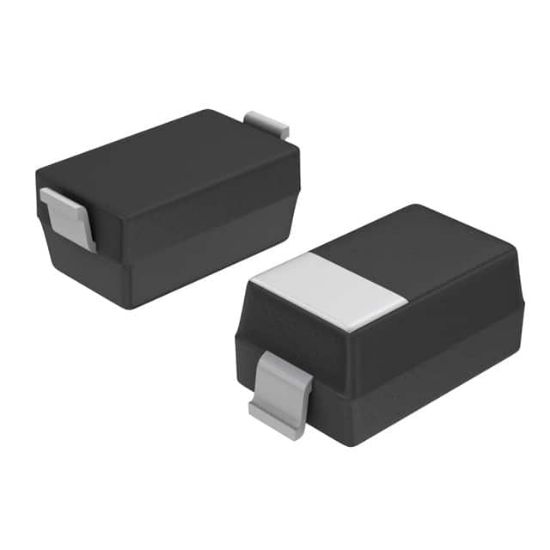

MMSZ12T1

DIODE ZENER 12V 500MW SOD-123

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: MMSZ12T1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MMSZ12T1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
A3x	MMSZ12T1		SOD-123	0	500 mW 12 V 5% Zener Diode Voltage Regulator
A3	MMSZ12T1		SOD-123	2	12V 500 mW ZENER DIODE

Impedance (Max) (Zzt)	25 Ohms
Power - Max	500 mW
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA
Operating Temperature	-55°C ~ 150°C
RoHS	RoHS
Current - Reverse Leakage @ Vr	100 nA @ 8 V
Mounting Type	Surface Mount
Supplier Device Package	SOD-123
Package	Cut Tape (CT),Bulk
Voltage - Zener (Nom) (Vz)	12 V
Tolerance	±5%
