MMSZ36T1

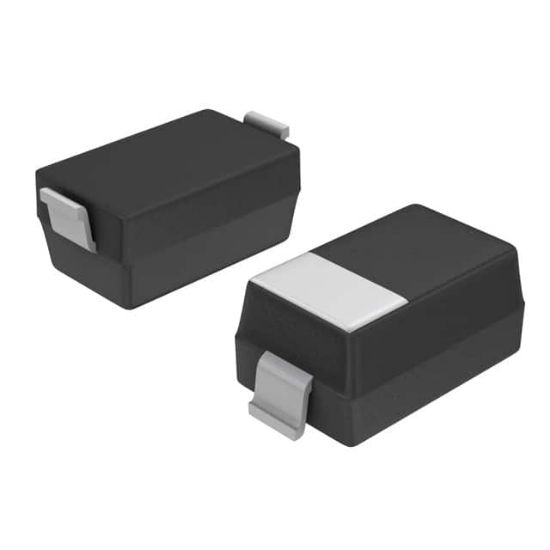

DIODE ZENER 36V 500MW SOD-123

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: MMSZ36T1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MMSZ36T1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
Y4	MMSZ36T1		SOD-123	2	36V 500 mW ZENER DIODE
Y4x	MMSZ36T1		SOD-123	0	500 mW 36 V 5% Zener Diode Voltage Regulator

Impedance (Max) (Zzt)	90 Ohms
Power - Max	500 mW
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA
Operating Temperature	-55°C ~ 150°C
RoHS	RoHS
Current - Reverse Leakage @ Vr	50 nA @ 25.2 V
Mounting Type	Surface Mount
Supplier Device Package	SOD-123
Package	Bulk
Voltage - Zener (Nom) (Vz)	36 V
Tolerance	±5%
