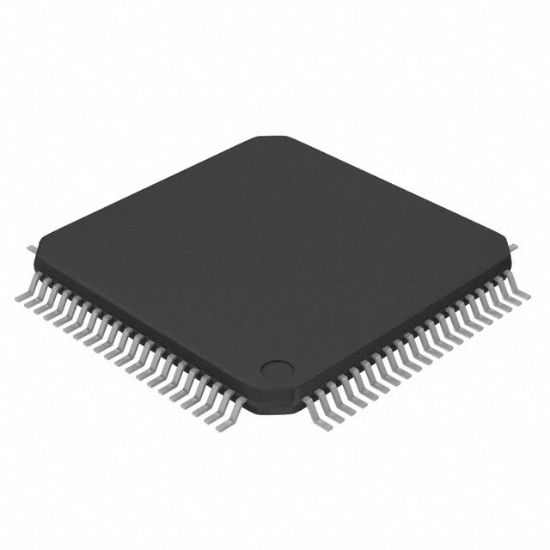

MSP430F436IPN

IC MCU 16BIT 24KB FLASH 80LQFP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: MSP430F436IPN

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MSP430F436IPN Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
M430F436-80	MSP430F436IPN		SPQFP-80	80	16-Bit Ultra-Low-Power Microcontroller, 24kB Flash, 1024B RAM, 12-Bit ADC, USART, 160 Segment LCD

Number of I/O	48
Core Processor	MSP430
EEPROM Size	-
Data Converters	A/D 8x12b
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)
Supplier Device Package	80-LQFP (12x12)
Core Size	16-Bit
Program Memory Size	24KB (24K x 8 + 256B)
Package	Bulk,Tray
Oscillator Type	Internal
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Program Memory Type	FLASH
Peripherals	Brown-out Detect/Reset, LCD, POR, PWM, WDT
Connectivity	SPI, UART/USART
RoHS	RoHS
Speed	8MHz
RAM Size	1K x 8
