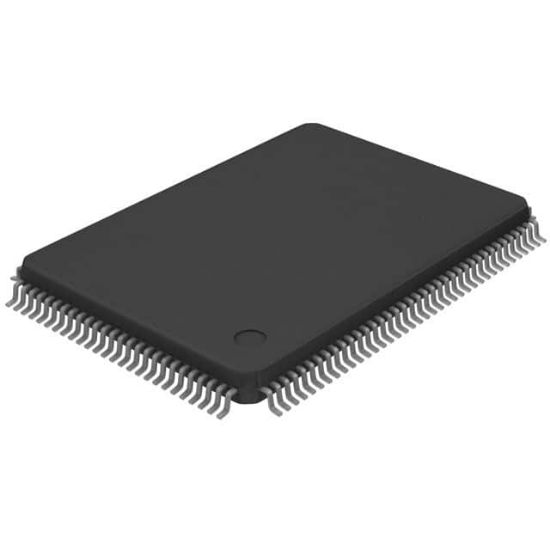

MSP430F6748IPEU

IC MCU 16BIT 512KB FLASH 128LQFP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: MSP430F6748IPEU

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MSP430F6748IPEU Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
F6748	MSP430F6748IPEU	TI	128	0	MSP430F677x, MSP430F676x, MSP430F674x Mixed Signal Microcontroller

Number of I/O	90
Core Processor	CPUXV2
EEPROM Size	-
Data Converters	A/D 8x10b
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)
Supplier Device Package	128-LQFP (20x14)
Core Size	16-Bit
Program Memory Size	512KB (512K x 8)
Package	Tray
Oscillator Type	Internal
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Program Memory Type	FLASH
Peripherals	Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT, 4x24b Sigma Delta Converter
Connectivity	I2C, IrDA, LINbus, SPI, UART/USART
RoHS	RoHS
Speed	25MHz
RAM Size	16K x 8
