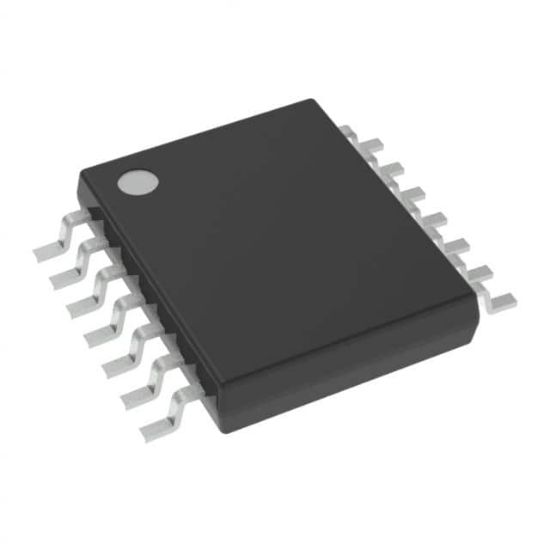

MSP430G2231IPW14

IC MCU 16BIT 2KB FLASH 14TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: MSP430G2231IPW14

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MSP430G2231IPW14 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
G2231	MSP430G2231IPW14		TSSOP-14	14	Mixed Signal Microcontroller

Number of I/O	10
Core Processor	MSP430
EEPROM Size	-
Data Converters	A/D 8x10b
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)
Supplier Device Package	14-TSSOP
Core Size	16-Bit
Program Memory Size	2KB (2K x 8)
Package	Tube
Oscillator Type	Internal
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Program Memory Type	FLASH
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Connectivity	I2C, SPI
RoHS	RoHS
Speed	16MHz
RAM Size	128 x 8
