MTM78E2B0LBF

MOSFET 2N-CH 20V 4A WSMINI8-F1-B

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panasonic Electronic Components

SKU: MTM78E2B0LBF

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MTM78E2B0LBF Description

Operating Temperature	150°C (TJ)
FET Feature	Standard
Mounting Type	Surface Mount

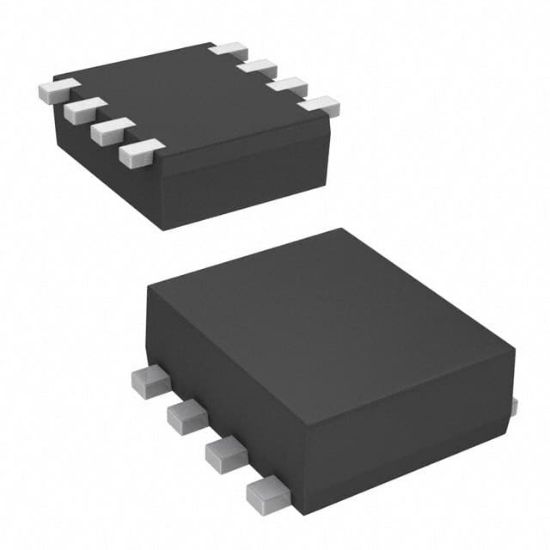

Supplier Device Package	WSMINI8-F1-B
Current - Continuous Drain (Id) @ 25°C	4A
Rds On (Max) @ Id, Vgs	25mOhm @ 2A, 4V
FET Type	2 N-Channel (Dual)
Power - Max	150mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	20V
Vgs(th) (Max) @ Id	1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	1100pF @ 10V
RoHS	RoHS
