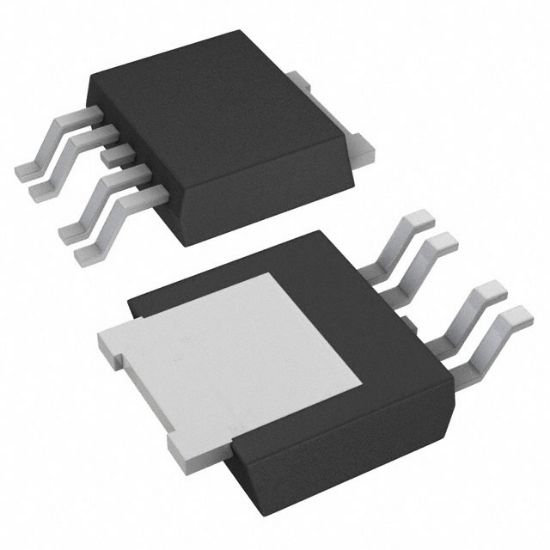

NCV5500DT50RKG

IC REG LINEAR 5V 500MA DPAK-5

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NCV5500DT50RKG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NCV5500DT50RKG Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
V5500UG	NCV5500DT50RKG		DPAK5	5	5.0V 500 mA LDO Voltage Regulator

Operating Temperature	-40°C ~ 125°C
Voltage Dropout (Max)	0.7V @ 500mA
Voltage - Output (Min/Fixed)	5V
Mounting Type	Surface Mount
Current - Output	500mA
PSRR	75dB ~ 70dB (120hZ ~ 10kHz)
Current - Supply (Max)	20 mA
Protection Features	Over Current, Over Temperature, Reverse Polarity
Output Configuration	Positive
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Control Features	Enable
Voltage - Input (Max)	16V
Supplier Device Package	DPAK-5
Number of Regulators	1
Current - Quiescent (Iq)	500 μA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
