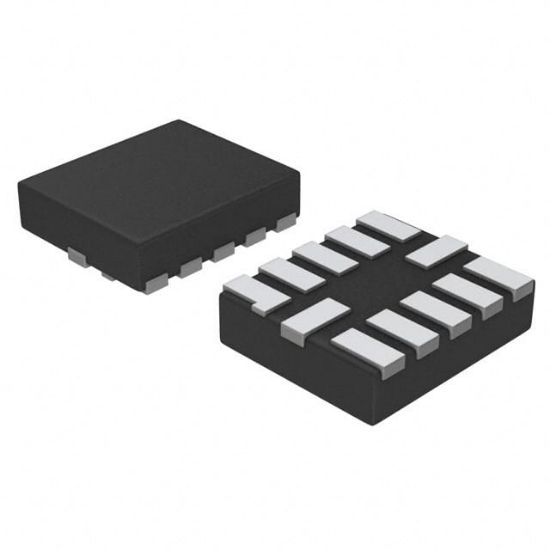

NLSV22T244MUTAG

IC TRNSLTR UNIDIRECTIONAL 12UQFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NLSV22T244MUTAG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NLSV22T244MUTAG Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
WEx	NLSV22T244MUTAG		UQFN2x1.2-12	0	Dual 2-Bit Dual-Supply Non-Inverting Level Translator

Operating Temperature	-40°C ~ 85°C (TA)
Voltage - VCCA	1.6 V ~ 3.6 V
Data Rate	-
Output Signal	-
Input Signal	-
Number of Circuits	2
Channels per Circuit	2
Package	Tape & Reel (TR),Bulk
Channel Type	Unidirectional
Voltage - VCCB	1.6 V ~ 3.6 V
Mounting Type	Surface Mount
Supplier Device Package	12-UQFN (1.7x2)
Translator Type	Voltage Level
Features	Over Voltage Protection, Power-Off Protection
RoHS	RoHS
Output Type	Tri-State, Non-Inverted
