NSR20F30NXT5G

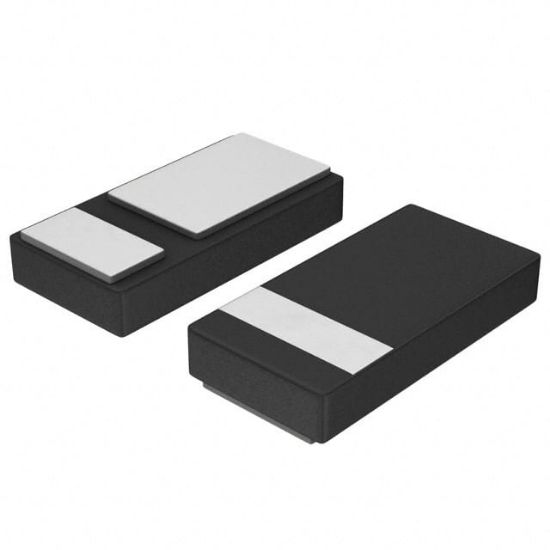

DIODE SCHOTTKY 30V 2A 2DSN

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NSR20F30NXT5G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NSR20F30NXT5G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
20F30	NSR20F30NXT5G		DSN2	2	Schottky barrier diode

Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Supplier Device Package	2-DSN (1.6x.80)
Diode Type	Schottky
Operating Temperature - Junction	150°C (Max)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Voltage - Forward (Vf) (Max) @ If	480 mV @ 2 A
Current - Reverse Leakage @ Vr	150 μA @ 30 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	30 V
Current - Average Rectified (Io)	2A (DC)
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
