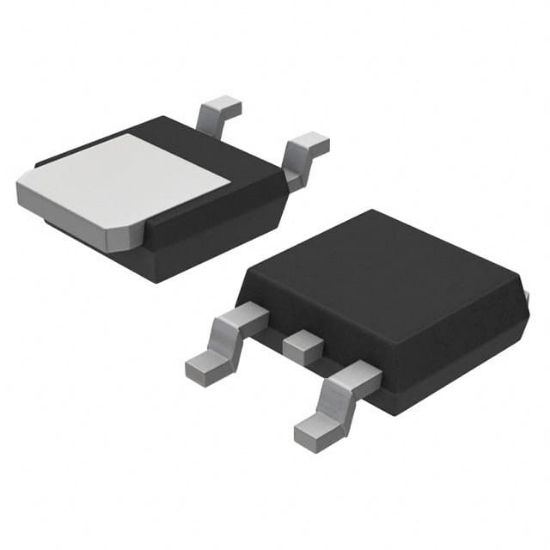

NSV1C301ET4G

TRANS NPN 100V 3A 3DPAK

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NSV1C301ET4G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NSV1C301ET4G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
1C31EG	NSV1C301ET4G		DPAK	0	100V, 3A, Low VCE(sat) NPN Transistor

Operating Temperature	-65°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	250mV @ 300mA, 3A
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	3 A
Supplier Device Package	DPAK
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	100 V
Power - Max	2.1 W
Package	Tape & Reel (TR)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 500mA, 2V
Frequency - Transition	120MHz
RoHS	RoHS
Transistor Type	NPN
