NTB5426NT4G

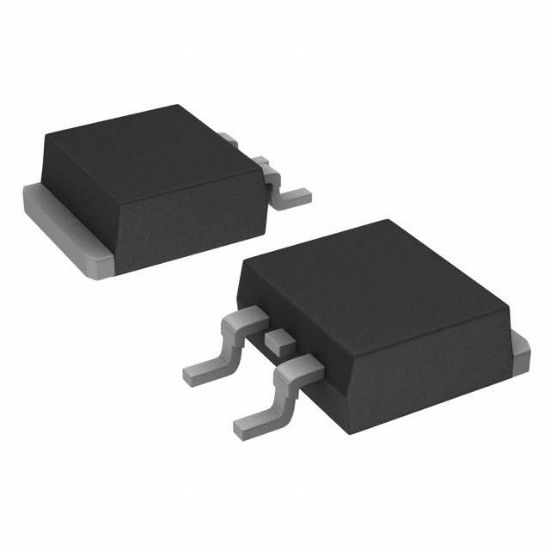

MOSFET N-CH 60V 120A D2PAK

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NTB5426NT4G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NTB5426NT4G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
5426N	NTB5426NT4G		D2PAK	3	Power MOSFET 120 Amps, 60 Volts N-Channel

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Rds On (Max) @ Id, Vgs	6mOhm @ 60A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tape & Reel (TR),Bulk
Power Dissipation (Max)	215W (Tc)
Drain to Source Voltage (Vdss)	60 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	170 nC @ 10 V
Supplier Device Package	D2PAK
Input Capacitance (Ciss) (Max) @ Vds	5800 pF @ 25 V
RoHS	RoHS
