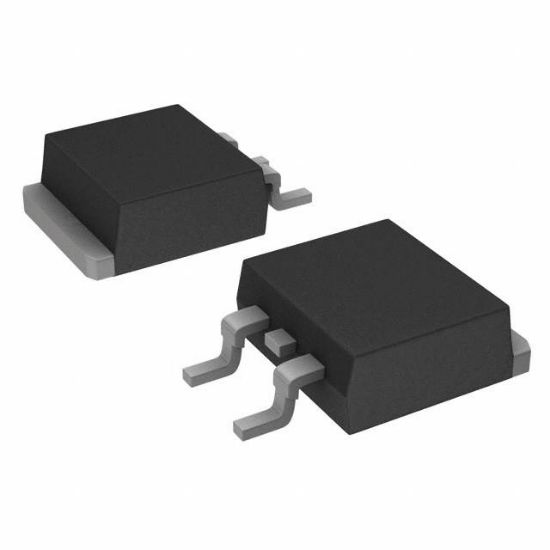

NTB75N06G

MOSFET N-CH 60V 75A D2PAK

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: NTB75N06G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NTB75N06G Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	75A (Ta)
Rds On (Max) @ Id, Vgs	9.5mOhm @ 37.5A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tube,Tube
Power Dissipation (Max)	2.4W (Ta), 214W (Tj)
Drain to Source Voltage (Vdss)	60 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	130 nC @ 10 V
Supplier Device Package	D2PAK
Input Capacitance (Ciss) (Max) @ Vds	4510 pF @ 25 V
RoHS	RoHS
