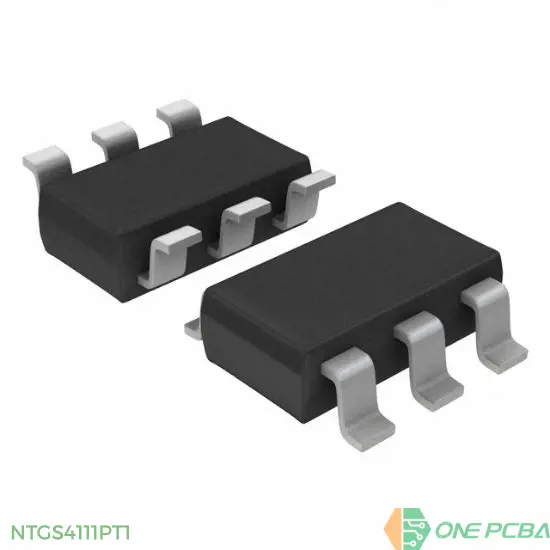

NTGS4111PT1

MOSFET P-CH 30V 2.6A 6TSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NTGS4111PT1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NTGS4111PT1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TG	NTGS4111PT1		TSOP-6	6	Power MOSFET -30 V, -4.7 A, Single P-Channel
TGx	NTGS4111PT1		SOT23-6	0	Power MOSFET -30 V, -4.7 A, Single P-Channel

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	2.6A (Ta)
Rds On (Max) @ Id, Vgs	60mOhm @ 3.7A, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR)
Power Dissipation (Max)	630mW (Ta)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	32 nC @ 10 V
Supplier Device Package	6-TSOP
Input Capacitance (Ciss) (Max) @ Vds	750 pF @ 15 V
RoHS	RoHS
