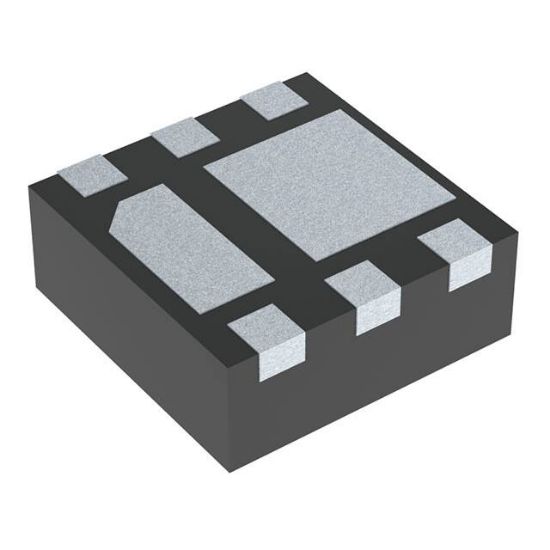

NTLJD2105LTBG

MOSFET N/P-CH 8V 2.5A 6-WDFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NTLJD2105LTBG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NTLJD2105LTBG Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
JNx	NTLJD2105LTBG		WDFN6	6	Power MOSFET, 8 V, 4.3 A, uCool High Side Load Switch with Level Shift

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Standard
Mounting Type	Surface Mount
Supplier Device Package	6-WDFN (2x2)
Current - Continuous Drain (Id) @ 25°C	2.5A
Rds On (Max) @ Id, Vgs	50mOhm @ 4A, 4.5V
FET Type	N and P-Channel
Power - Max	520mW
Package	Tape & Reel (TR),Bulk
Drain to Source Voltage (Vdss)	8V
Vgs(th) (Max) @ Id	1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	-
RoHS	RoHS
