NTR4502PT1G

MOSFET P-CH 30V 1.13A SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NTR4502PT1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NTR4502PT1G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TR	NTR4502PT1G	ON	SOT-23/SC-59	0	场效应管FET MOSFET-P沟道MOSFET P-Channel

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	1.13A (Ta)
Rds On (Max) @ Id, Vgs	200mOhm @ 1.95A, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Power Dissipation (Max)	400mW (Tj)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	10 nC @ 10 V

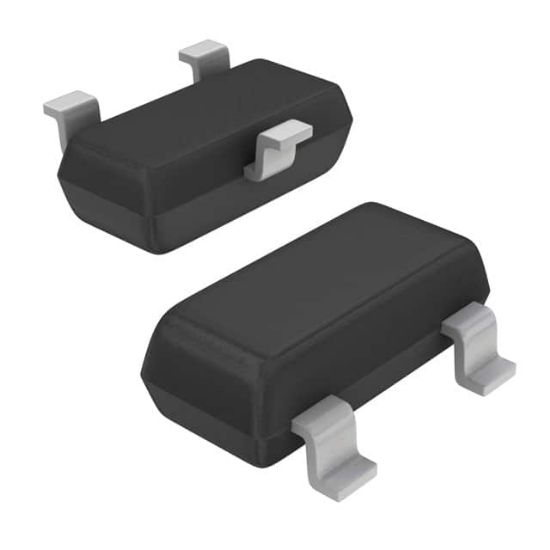

Supplier Device Package	SOT-23-3 (TO-236)
Input Capacitance (Ciss) (Max) @ Vds	200 pF @ 15 V
RoHS	RoHS
