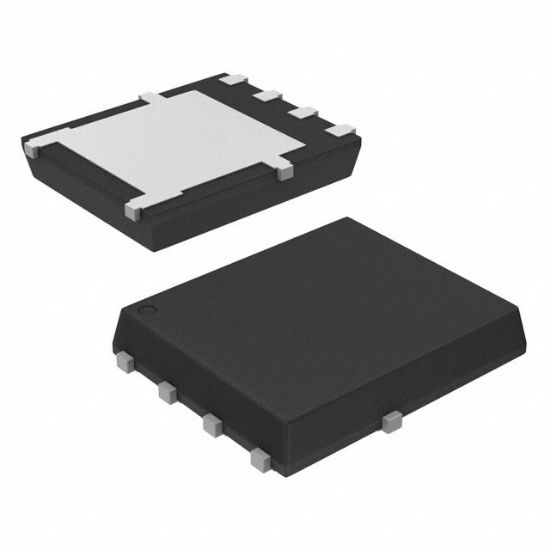

NTS10100EMFST1G

DIODE SCHOTTKY 100V 10A 5DFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NTS10100EMFST1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NTS10100EMFST1G Description

Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Supplier Device Package	5-DFN (5x6) (8-SOFL)
Diode Type	Schottky
Operating Temperature - Junction	-55°C ~ 175°C
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Voltage - Forward (Vf) (Max) @ If	720 mV @ 10 A
Current - Reverse Leakage @ Vr	50 μA @ 100 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	100 V
Current - Average Rectified (Io)	10A
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)

Service Assurance

The transaction is just the beginning, ONEPCBA provides a closed-loop service that guarantees quality from pre-sales to after-sales. As a value-added service provider, we provide quality assurance, including a longer after-sales guarantee time than the original factory.

We have established a clean, constant temperature warehouse, and constantly monitor the temperature and humidity of the warehouse. For electrostatic sensitive devices (MOS, transistors, CMOS devices, etc.), use electrostatic shielding measures; for magnetic field sensitive devices, also use corresponding magnetic field isolation measures.

In addition to ensuring the quality of components from the source, we have also established a strict QC warehousing process. We have established a database of components, including labels, chip appearances, chip silkscreens, and markings of wafers inside some chips. Compare the differences from various dimensions, and strictly confirm with the original factory. At the same time, we will also conduct other test requirements put forward by customers such as solderability, X-ray perspective inspection, ultrasonic scanning, slicing, uncapping, ambient temperature test, etc.

We establish a continuous cooperative relationship with original manufacturers, agents, and authorized catalogs to control the quality of materials from the source. Therefore, the components we sell are all traceable. Whether it is a process change or a version upgrade, we can be notified at the first time and inform customers of possible changes in advance to deal with various possible problems.
