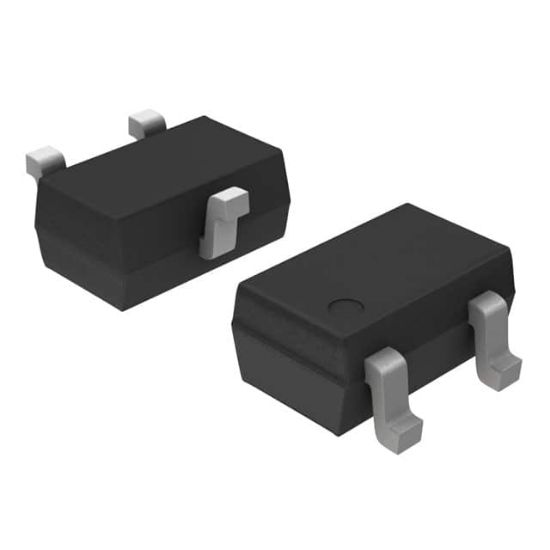

NTS4001NT1

MOSFET N-CH 30V 270MA SC70-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NTS4001NT1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NTS4001NT1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TDx	NTS4001NT1		SC-70	3	Small Signal MOSFET 30V, 270 mA, Single N-Channel

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	270mA (Ta)
Rds On (Max) @ Id, Vgs	1.5Ohm @ 10mA, 4V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4V
Package	Tape & Reel (TR)
Power Dissipation (Max)	330mW (Ta)
Drain to Source Voltage (Vdss)	30 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	1.5V @ 100μA
Gate Charge (Qg) (Max) @ Vgs	1.3 nC @ 5 V
Supplier Device Package	SC-70-3 (SOT323)
Input Capacitance (Ciss) (Max) @ Vds	33 pF @ 5 V
RoHS	RoHS
