OPA569AIDWPR

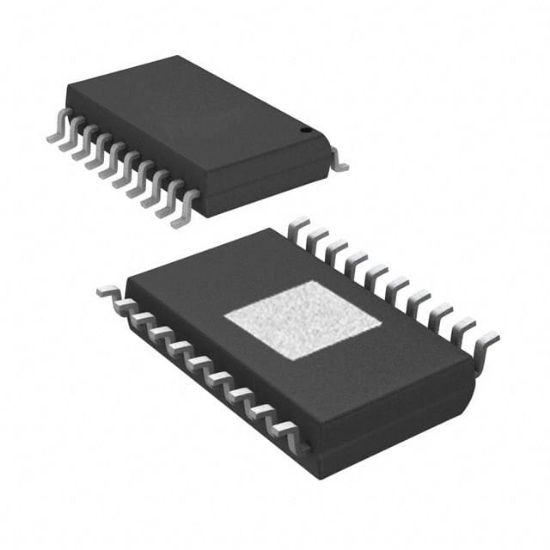

IC OPAMP GP 1 CIRCUIT 20HSOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: OPA569AIDWPR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

OPA569AIDWPR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
OPA569A	OPA569AIDWPR	TI	20	0	Power Op Amp, Output Signal Swings Within 200mV of Rails at 2A Output Current

Operating Temperature	-40°C ~ 85°C
Current - Input Bias	1 pA
Mounting Type	Surface Mount
Current - Output / Channel	2.4 A
Slew Rate	1.2V/μs
Number of Circuits	1
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Gain Bandwidth Product	1.2 MHz
Voltage - Input Offset	500 μV
Amplifier Type	General Purpose
Supplier Device Package	20-HSOIC
Voltage - Supply Span (Max)	5.5 V
Voltage - Supply Span (Min)	2.7 V
-3db Bandwidth	-
RoHS	RoHS
Current - Supply	9mA
Output Type	Rail-to-Rail
