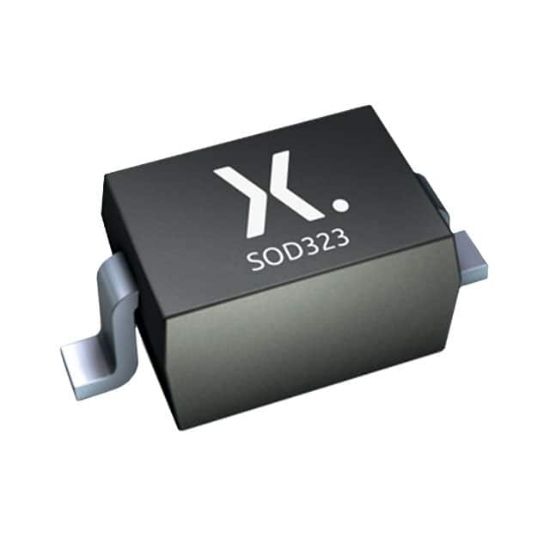

PDZ18B/ZLX

DIODE ZENER 17.96V 400MW SOD323

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: PDZ18B/ZLX

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PDZ18B/ZLX Description

Impedance (Max) (Zzt)	20 Ohms
Power - Max	400 mW
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 100 mA
Operating Temperature	150°C (TJ)
RoHS	RoHS
Current - Reverse Leakage @ Vr	50 nA @ 13 V
Mounting Type	Surface Mount
Supplier Device Package	SOD-323
Package	Tape & Reel (TR)
Voltage - Zener (Nom) (Vz)	17.96 V
Tolerance	±2%
