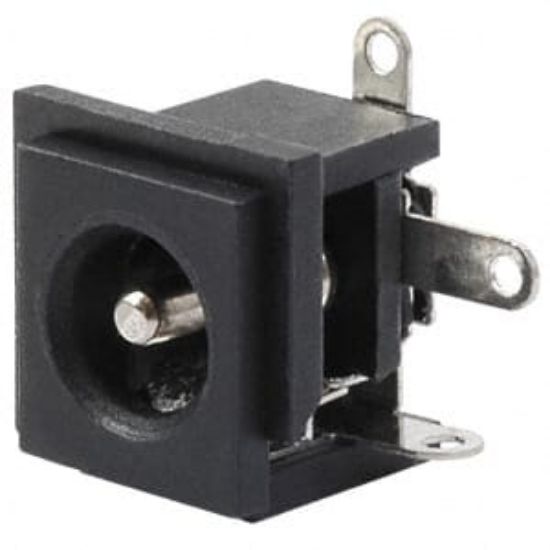

PJ-026A

CONN PWR JACK 2X5.5MM SOLDER

1 review(s) | Add your review

Availability: In stock

Manufacturer: CUI Devices

SKU: PJ-026A

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PJ-026A Description

Industry Recognized Mating Diameter	2.10mm ID (0.083\"), 5.50mm OD (0.217\")
Ingress Protection	-
Connector Type	Jack
Mounting Type	Panel Mount
Internal Switch(s)	Single Switch, Normally Closed
Gender	Male
Current Rating (Amps)	2.5 A
Material Flammability Rating	UL94 V-0
Package	Bag
Shielding	Unshielded
Termination	Solder Eyelet(s)
Mating Length/Depth	0.315\" (8.00mm)
Number of Positions/Contacts	2 Conductors, 3 Contacts
Insulation Color	-
Actual Diameter	0.079\" (2.00mm ID), 0.236\" (6.00mm OD)
Features	-
Mounting Feature	-
RoHS	RoHS
Voltage - Rated	24VDC
