PSMN021-100YLX-6342549

PSMN021-100YL - N-CHANNEL 100V,

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: PSMN021-100YLX-6342549

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PSMN021-100YLX-6342549 Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	49A (Tc)
Rds On (Max) @ Id, Vgs	21.5mOhm @ 15A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Package	Bulk
Power Dissipation (Max)	147W (Tc)
Drain to Source Voltage (Vdss)	100 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	65.6 nC @ 10 V

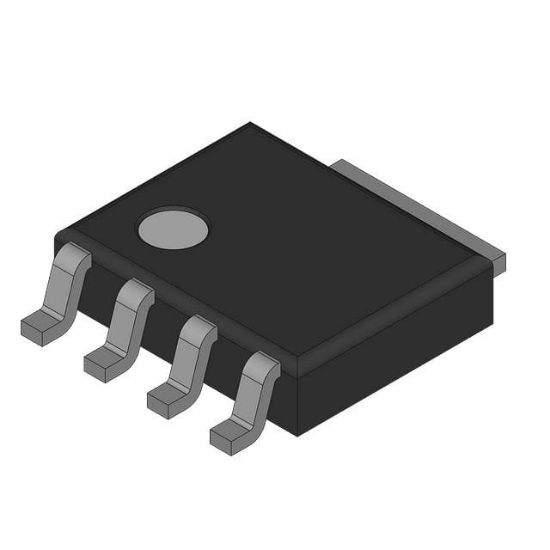

Supplier Device Package	LFPAK56, Power-SO8
Input Capacitance (Ciss) (Max) @ Vds	4640 pF @ 25 V
RoHS	RoHS
