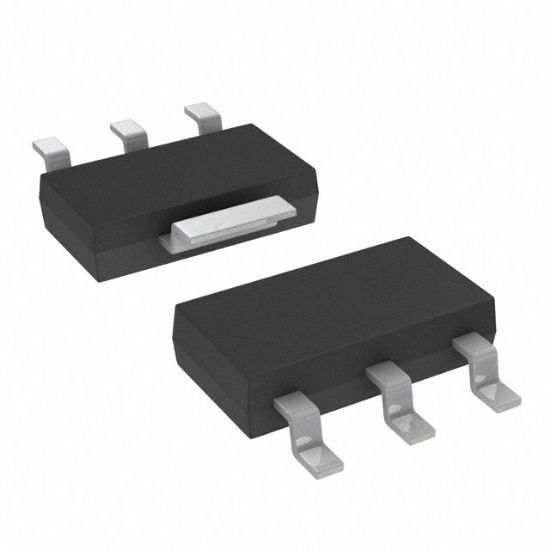

PZT3906

TRANS PNP 40V 0.2A SOT223

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: PZT3906

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PZT3906 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
3906	PZT3906	ST	SOT-223	4	Sw, 60V, 200mA, 1W, B=100..300, >250MHz
ZT3906	PZT3906	Sie	SOT-223	0	Sw, 60V, 200mA, 1.5W, B=100..300, >250MHz
P2A	PZT3906	MoTorexola	SOT-223	4	Sw, 60V, 100mA, 1.2W, B=100..300, >250MHz
ZT 3906	PZT3906		SOT223	4	PNP Silicon Switching Transistor

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	400mV @ 5mA, 50mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	200 mA
Supplier Device Package	SOT-223-4
Current - Collector Cutoff (Max)	-
Voltage - Collector Emitter Breakdown (Max)	40 V
Power - Max	1 W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Frequency - Transition	250MHz
RoHS	RoHS
Transistor Type	PNP
