REG1117

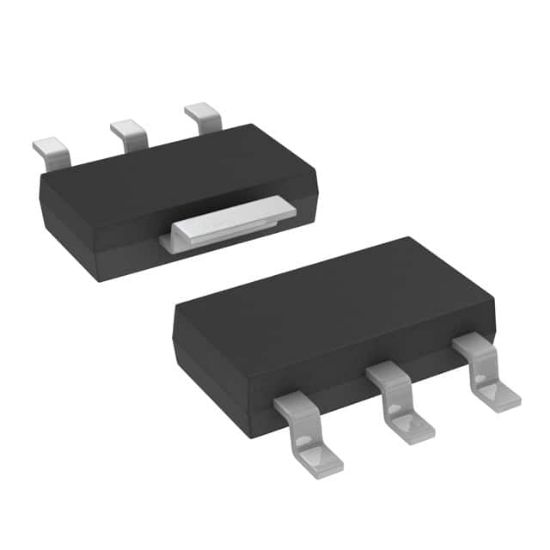

IC REG LIN POS ADJ 800MA SOT223

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: REG1117

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

REG1117 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
BB1117	REG1117		SOT-223	4	800mA Low Dropout (LDO) Positive Regulator Adj

Operating Temperature	-40°C ~ 125°C
Voltage Dropout (Max)	1.2V @ 800mA
Voltage - Output (Min/Fixed)	1.25V
Mounting Type	Surface Mount
Current - Output	800mA
PSRR	62dB (120Hz)
Current - Supply (Max)	-
Protection Features	Over Current, Over Temperature
Output Configuration	Positive
Package	Tube
Control Features	-
Voltage - Input (Max)	15V
Supplier Device Package	SOT-223-4
Number of Regulators	1
Current - Quiescent (Iq)	10 mA
RoHS	RoHS
Voltage - Output (Max)	13.5V
Output Type	Adjustable
