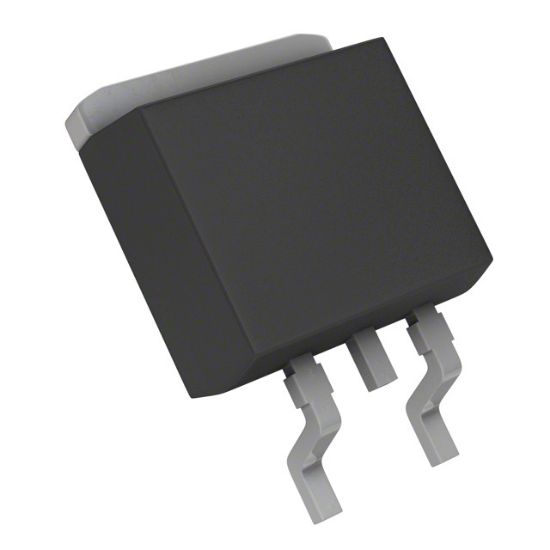

RSD131P10TL

MOSFET P-CH 100V 13A CPT3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rohm Semiconductor

SKU: RSD131P10TL

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

RSD131P10TL Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
131P10	RSD131P10TL		CPT3	0	4V Drive Pch MOSFET

Operating Temperature	150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	13A (Tc)
Rds On (Max) @ Id, Vgs	200mOhm @ 6.5A, 10V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Package	Tape & Reel (TR)
Power Dissipation (Max)	850mW (Ta), 20W (Tc)
Drain to Source Voltage (Vdss)	100 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	40 nC @ 10 V
Supplier Device Package	CPT3
Input Capacitance (Ciss) (Max) @ Vds	2400 pF @ 25 V
RoHS	RoHS
