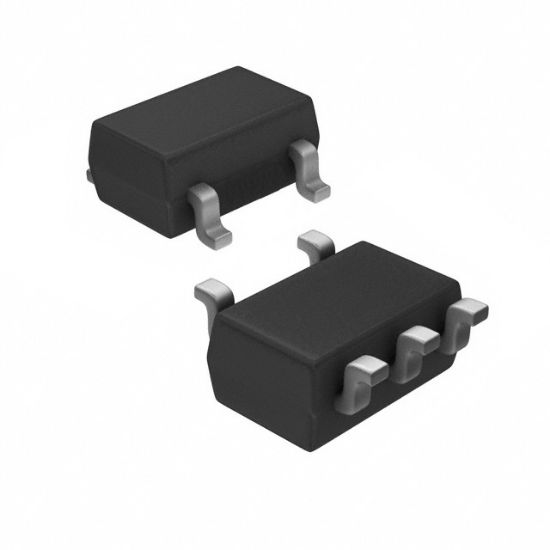

S-1132B20-M5T1G

IC REG LINEAR 2V 300MA SOT23-5

1 review(s) | Add your review

Availability: In stock

Manufacturer: ABLIC Inc.

SKU: S-1132B20-M5T1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

S-1132B20-M5T1G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
QLF	S-1132B20-M5T1G	Sii	SOT-23-5	5	LDO, 2.0V±1.0%, 300mA, +CE

Operating Temperature	-40°C ~ 85°C (TA)
Voltage Dropout (Max)	0.23V @ 100mA
Voltage - Output (Min/Fixed)	2V
Mounting Type	Surface Mount
Current - Output	300mA
PSRR	70dB (1kHz)
Current - Supply (Max)	40 μA
Protection Features	Over Current
Output Configuration	Positive
Package	Tape & Reel (TR)
Control Features	Enable
Voltage - Input (Max)	6.5V
Supplier Device Package	SOT-23-5
Number of Regulators	1
Current - Quiescent (Iq)	1 μA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
