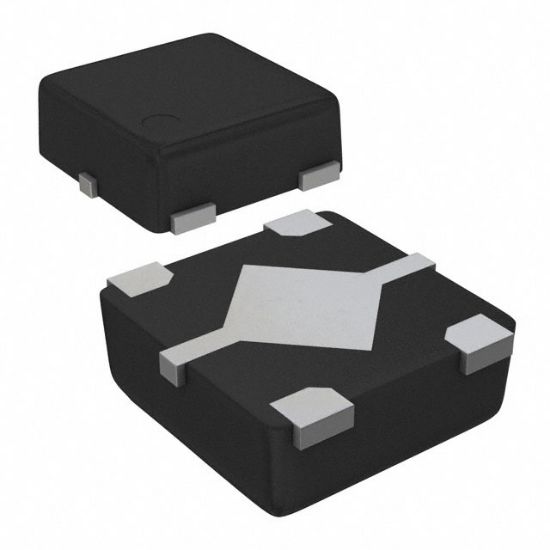

S-1313D22-A4T1U3

IC REG LINEAR 2.2V 200MA HSNT4-A

1 review(s) | Add your review

Availability: In stock

Manufacturer: ABLIC Inc.

SKU: S-1313D22-A4T1U3

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

S-1313D22-A4T1U3 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
1PP	S-1313D22-A4T1U3	Sii	HSNT-4	4	LDO, 2.2V±1%, 200mA, +CE

Operating Temperature	-40°C ~ 85°C (TA)
Voltage Dropout (Max)	0.49V @ 100mA
Voltage - Output (Min/Fixed)	2.2V
Mounting Type	Surface Mount
Current - Output	200mA
PSRR	-
Current - Supply (Max)	1.35 μA
Protection Features	Overcurrent, Thermal Shutdown
Output Configuration	Positive
Package	Tape & Reel (TR)
Control Features	Enable
Voltage - Input (Max)	5.5V
Supplier Device Package	HSNT-4-A
Number of Regulators	1
Current - Quiescent (Iq)	100 nA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
