SFH1690AT

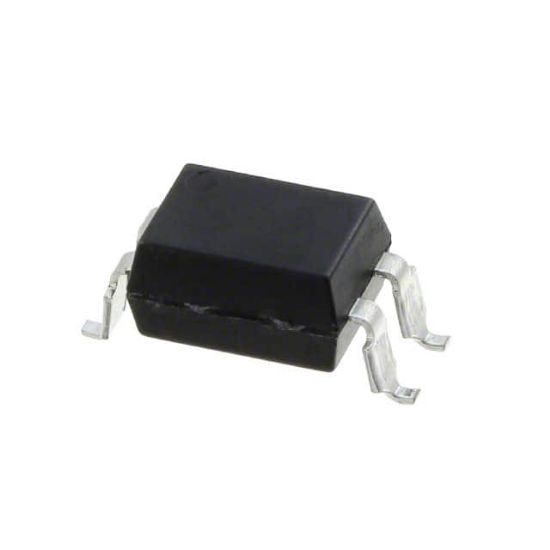

OPTOISOLATOR 3.75KV TRANS 4SOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay Semiconductor Opto Division

SKU: SFH1690AT

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SFH1690AT Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
1690A	SFH1690AT		SOP-4	0	Optocoupler Phototransistor Output, 110 C Rated

Operating Temperature	-55°C ~ 110°C
Rise / Fall Time (Typ)	3μs, 4μs
Mounting Type	Surface Mount
Supplier Device Package	4-SOP
Current Transfer Ratio (Max)	150% @ 5mA
Vce Saturation (Max)	400mV
Number of Channels	1
Voltage - Output (Max)	70V
Turn On / Turn Off Time (Typ)	5μs, 3μs
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current Transfer Ratio (Min)	50% @ 5mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - Output / Channel	50mA
Input Type	DC
Current - DC Forward (If) (Max)	50 mA
Voltage - Isolation	3750Vrms
RoHS	RoHS
Output Type	Transistor
