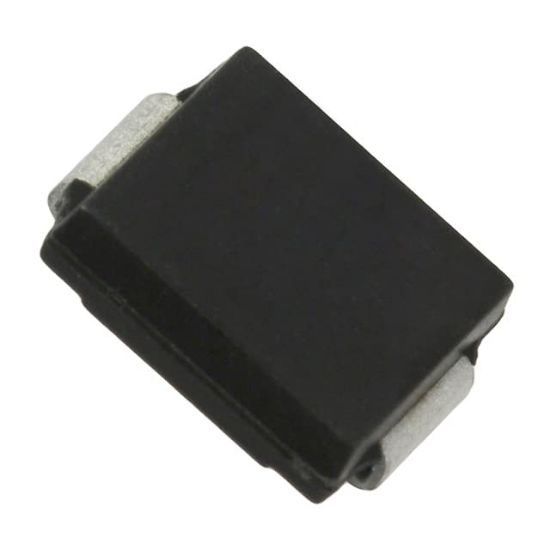

SMLJ33CA

TVS DIODE 33VWM 53.3VC SMC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Bourns Inc.

SKU: SMLJ33CA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SMLJ33CA Description

Bourns SMLJ Series TVS Diodes

Bourns SMLJ Transient Voltage Suppressor (TVS) Diodes are offered for surge and ESD protection applications in compact chip package DO-214AB (SMC) size format to meet the increasing demand for smaller electronic components. The SMJL TVS series provides a working peak reverse voltage from 5V up to 170V and breakdown voltage up to 200V. Typical fast response time is less than 1ns for unidirectional devices and less than 5ns for bidirectional devices from 0V to minimum breakdown voltage. Designed with a flat configuration to minimize roll away, Bourns Chip Diodes are easy to handle with standard pick-and-place equipment. Compliant with JEDEC standards, the SMLJ TVS Diodes are well-suited for IEC 61000-4-2 ESD (Min. Level 4), IEC 61000-4-4 EFT, and IEC 61000-4-5 Surge applications.

marking code	Part No.	Manufacturer	Package	Pin	Memo
L33CA	SMLJ33CA	Msc	DO-214AB/SMC	2	Vrwm=33V, Vbr=36.7..40.6V, Ipp=56.2A, 3000W(1ms), Bidirectional
IFM	SMLJ33CA	Brn	DO-214AB/SMC	2	Vbr=36.70..40.60V, Vrwm=33V, Irsm=56.2A, 3000W(1ms), Bidirectional
DFM	SMLJ33CA	Mco	DO-214AB	0	Vbr=33V, 56.2A, 3000W(1ms), Bidirectional

Operating Temperature	-55°C ~ 150°C (TJ)
Voltage - Reverse Standoff (Typ)	33V
Power - Peak Pulse	3000W (3kW)
Voltage - Clamping (Max) @ Ipp	53.3V
Mounting Type	Surface Mount
Supplier Device Package	SMC (DO-214AB)
Capacitance @ Frequency	-
Voltage - Breakdown (Min)	36.7V
Current - Peak Pulse (10/1000μs)	56.2A
Unidirectional Channels	-
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Line Protection	No
Type	Zener
Bidirectional Channels	1
Applications	General Purpose
RoHS	RoHS
