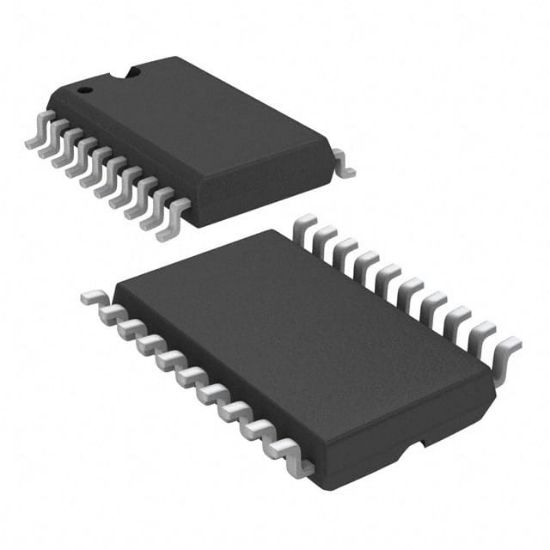

SN74ABT377ADWR

IC FF D-TYPE SNGL 8BIT 20SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74ABT377ADWR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74ABT377ADWR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ABT377A	SN74ABT377ADWR		SOIC-20W	20	Octal D-Type Flip-Flops with Enable

Voltage - Supply	4.5V ~ 5.5V
Number of Elements	1
Mounting Type	Surface Mount
Supplier Device Package	20-SOIC
Number of Bits per Element	8
Function	Standard
Clock Frequency	150 MHz
Operating Temperature	-40°C ~ 85°C (TA)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Max Propagation Delay @ V, Max CL	6.8ns @ 5V, 50pF
Type	D-Type
Current - Output High, Low	32mA, 64mA
Trigger Type	Positive Edge
Current - Quiescent (Iq)	250 μA
RoHS	RoHS
Input Capacitance	3.5 pF
Output Type	Non-Inverted
