SN74ABT823DWR

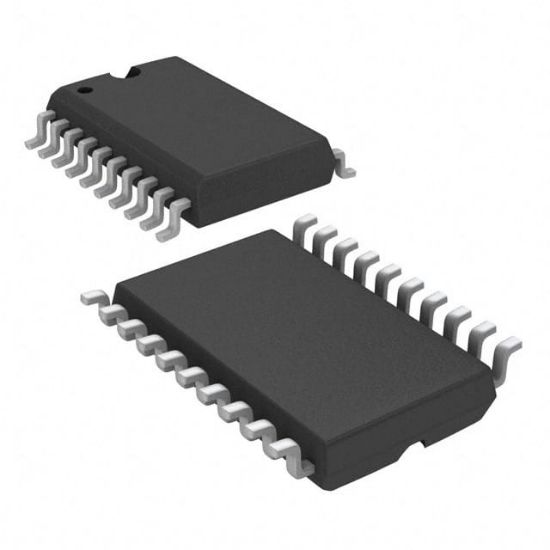

IC FF D-TYPE SNGL 9BIT 20SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74ABT823DWR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74ABT823DWR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ABT823	SN74ABT823DWR		SOIC-24W	24	9-Bit Bus-Interface Flip-Flops with 3-State Outputs

Voltage - Supply	4.5V ~ 5.5V
Number of Elements	1
Mounting Type	Surface Mount
Supplier Device Package	24-SOIC
Number of Bits per Element	9
Function	Master Reset
Clock Frequency	200 MHz
Operating Temperature	-40°C ~ 85°C (TA)
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Max Propagation Delay @ V, Max CL	6.1ns @ 5V, 50pF
Type	D-Type
Current - Output High, Low	32mA, 64mA
Trigger Type	Positive Edge
Current - Quiescent (Iq)	250 μA
RoHS	RoHS
Input Capacitance	4 pF
Output Type	Tri-State, Non-Inverted
