SN74ACT74NE4

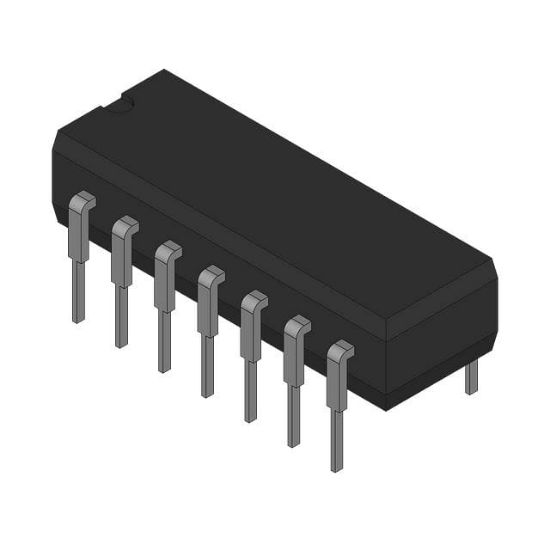

IC FF D-TYPE DUAL 1BIT 14DIP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: SN74ACT74NE4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74ACT74NE4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
SN74ACT74N	SN74ACT74NE4	TI	14	0	Dual Positive-Edge-Triggered D-Type Flip-Flops With Clear and Preset

Voltage - Supply	4.5V ~ 5.5V
Number of Elements	2
Mounting Type	Through Hole
Supplier Device Package	14-PDIP
Number of Bits per Element	1
Function	Set(Preset) and Reset
Clock Frequency	210 MHz
Operating Temperature	-40°C ~ 85°C (TA)
Package	Bulk
Max Propagation Delay @ V, Max CL	11ns @ 5V, 50pF
Type	D-Type
Current - Output High, Low	24mA, 24mA
Trigger Type	Positive Edge
Current - Quiescent (Iq)	2 μA
RoHS	RoHS
Input Capacitance	3 pF
Output Type	Complementary
