SN74ALVCH16409DL

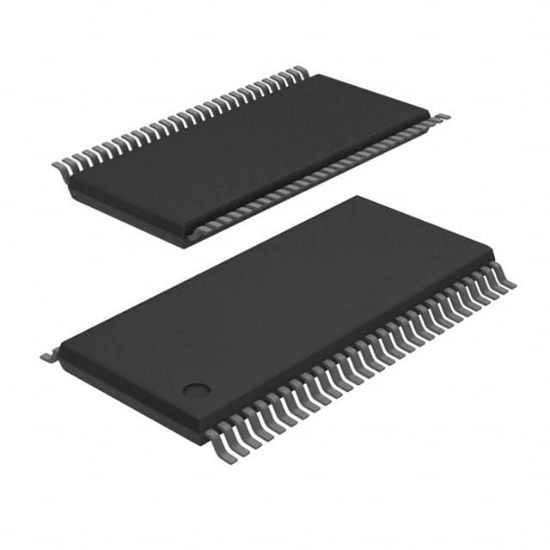

IC UNIV BUS EXCHANGER 56SSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: SN74ALVCH16409DL

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74ALVCH16409DL Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ALVCH16409	SN74ALVCH16409DL		SSOP-56	56	9-Bit 4-Port Universal Bus Exchanger With 3-State Outputs

Operating Temperature	-40°C ~ 85°C
Current - Output High, Low	24mA, 24mA
Number of Circuits	9-Bit, 4-Port
RoHS	RoHS
Logic Type	Universal Bus Exchanger
Voltage - Supply	1.65V ~ 3.6V
Supplier Device Package	56-SSOP
Package	Tube,Tube
Mounting Type	Surface Mount
